Urology

Technology

• TFL 1.94 µm wavelength technology sets a new standard in endourology by delivering unmatched precision, enhanced surgical safety, and superior clinical outcomes across a wide range of soft tissue procedures, including the treatment of kidney stones, benign prostatic hyperplasia (BPH), and bladder and urothelial tumors.

• Clinical comparison: laser vs. non-laser treatment methods

  Parameters	Non-laser methods	Laser methods
  Stone-free rate	SWL: ++ Non-laser PCNL: ++++	Laser URS: +++++ Laser PCNL: +++++
  Operation time	SWL: ++ Non-laser PCNL: +++++	Laser URS: +++++ Laser PCNL: ++++
  Retreatment rate	SWL: + Non-laser PCNL: ++++	Laser URS: +++++ Laser PCNL: +++++
  Complication rate	SWL: ++ Non-laser PCNL: +++	Laser URS: ++++ Laser PCNL: ++++
  Hospital stay	SWL: +++++ Non-laser PCNL: +++	Laser URS: ++++ Laser PCNL: +++

  URS - Ureteroscopy; PCNL - Percutaneous Nephrolithotomy

• Tissue Sensor technology is an intelligent feature designed to maximize surgical safety during lithotripsy



  It continuously monitors laser-tissue interaction in real time, helping prevent accidental energy delivery to non-target soft tissues. This technology ensures that energy is applied only where it’s needed, protecting surrounding structures and minimizing complications.

• Thulium Fiber Laser (TFL) lithotripsy technology

  Thulium Fiber Laser (TFL) represents the most advanced innovation in urinary stone management, combining superior efficiency, precision, and safety.

  TFL offers multiple fragmentation strategies tailored to stone size and surgical goals:

  • Fragmentation mode breaks stones into fragments smaller than 3 mm, facilitating easy removal.

  • Dusting mode pulverizes stones into fine particles less than 1 mm, allowing for natural elimination.

  • Fine Dusting mode further reduces stone debris to ultrafine dust smaller than 0.25 mm, minimizing the need for manual extraction.



  With minimal retropulsion, stones remain stable during energy delivery, improving fragmentation efficiency and procedural control. TFL operates at a lower temperature compared to traditional lasers, significantly reducing thermal injury to surrounding tissues and enhancing overall procedural safety.

  Reduced fiber burn-back extends the lifespan of the laser fiber, lowering procedural costs and ensuring consistent energy delivery throughout the surgery.

• UltraPulse fragmentation mode



  UltraPulse is a breakthrough laser mode optimized for efficient and safe stone fragmentation.
  It works by creating thermal stress waves inside the stone, causing it to crack and disintegrate without excessive mechanical force.


  Compared to standard pulse modes, UltraPulse provides higher fragmentation efficiency and greater safety, minimizing the risk of tissue damage during lithotripsy procedures.

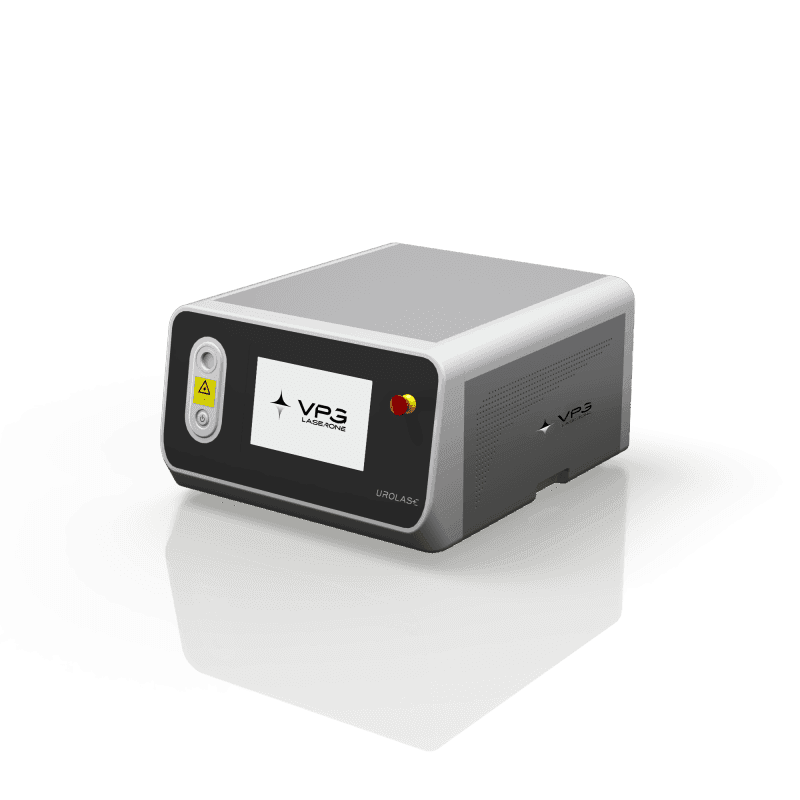

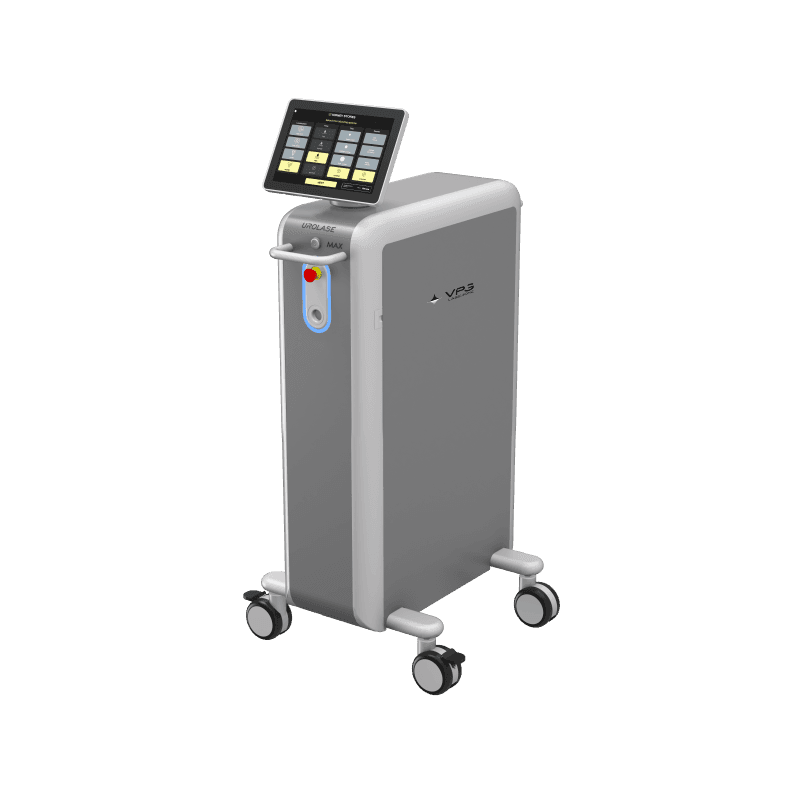

• Urolase Vision System (UVS) acts as a real-time surgical assistant.

  It integrates directly with Urolase+, Premium, and MAX laser devices to provide on-screen monitoring and visualization during surgery. UVS enhances surgeon awareness, improves procedural control, and supports safer, faster, and more precise treatments — especially during complex lithotripsy and soft tissue surgeries.

• Clinical comparison: Ho:YAG vs. TFL

  Parameters	Holmium laser (Ho:YAG)	Thulium fiber laser (TFL)	Clinical advantages
  Operation time	25.5-80.0 min (URS)	25.13-55.0 min (URS)	15–30% faster procedures with TFL
  Stone-free rate	66-98% (PCNL) 90% (URS	94.9-100% (PCNL) 66.7-94.9% (URS)	Higher success rates with TFL
  Retropulsion control	Severe: 12.5% Mild: 25%	None: 0% Insignificant: 3%	Superior stone stability with TFL
  Hospital stay	2.1-5.6 days (PCNL) 2.6 days (URS)	1-3 days (URS) 2-3 days (PCNL)	Faster recovery and discharge with TFL
  Hematuria/Bleeding	6-41%	0-22%	Reduced bleeding risk
  UTI rate	2-30%	0-9.5%	Lower infection risk
  Perforation risk	1.1-3.8%	0%	Enhanced surgical safety
  Severe complications (Clavien III)	0-7%	0%	Near-zero major complication rate

• Thulium Fiber Laser (TFL) soft tissue surgery technology



  Thulium Fiber Laser (TFL) technology is transforming soft tissue surgery by offering unmatched precision, efficiency, and surgical control.

  TFL ensures superior hemostasis, providing excellent bleeding control during both vaporization and enucleation procedures.
  This results in a cleaner surgical field, improved visibility, and safer operations.

  With a minimal thermal spread of only 0.6 mm — compared to 1–3 mm with conventional Ho:YAG lasers — TFL significantly reduces collateral tissue damage, preserving healthy surrounding structures and promoting faster patient recovery.

  Unlike pulsed laser systems, TFL delivers continuous-wave energy, allowing for smoother, more controlled tissue cutting.
  This continuous energy flow enhances precision during dissection and minimizes surgical trauma.

  TFL enables 20% shorter operation times, even in challenging cases involving large prostates (>80 mL), improving surgical workflow, reducing anesthesia exposure, and enhancing overall clinical efficiency.

  Through these advantages, TFL redefines standards in soft tissue surgery, delivering better clinical outcomes and a more predictable surgical experience for both surgeons and patients.

• Technical comparison: Ho:YAG vs. TFL

  Parameters	Holmium laser (Ho:YAG)	Thulium fiber laser (TFL)
  Ablation efficiency	Moderate	2–4× higher efficiency
  Retropulsion	High	Low

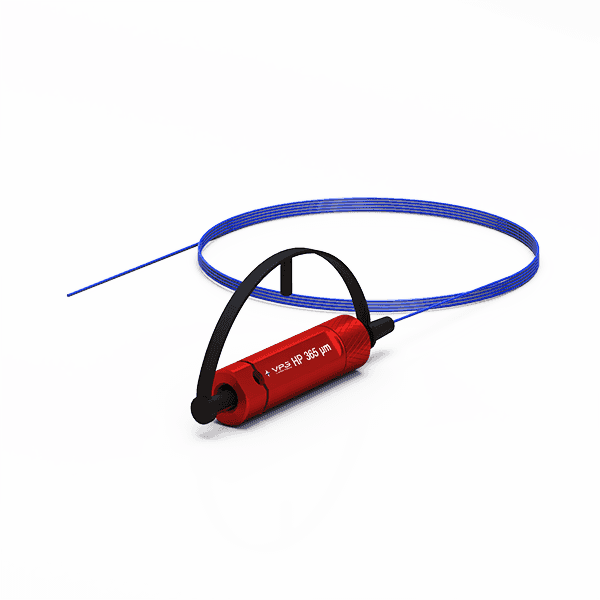

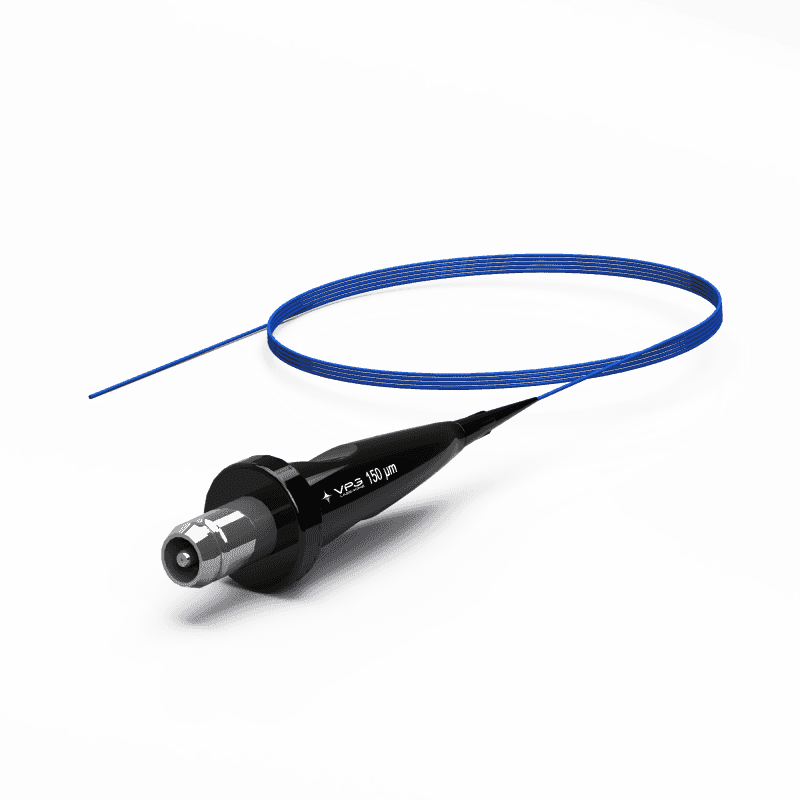

  Fiber flexibility	Requires fibers ≥200 µm	Compatible with 150 µm fibers
  Visibility	Reduced due to "snowstorm effect"	Clear with minimal vapor interference
  Energy consumption	High (requires water-cooled systems)	Low (air-cooled, compact design)
  Frequency range	Up to 120 Hz	Up to 6000 Hz
